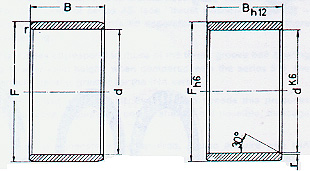

Inner Rings :-

INNER RACES
IR SERIES                          LR SERIES
Dimensions in mm
Dimensions in mm
Dimensions in mm
d F B d F B d F B
5 8 12 15 18 12.5 LR 22 26 16
5 8 16 15 18 16 22 26 20
6 9 12 15 18 16.5 LR 22 28 17
6 9 16 15 19 16 22 28 20
6 10     10 H 15 19 20 22 28 20.5 LR
6 10     12 H 15 20     12 H 22 28 30
7 10 10.5 LR 15 20 13 25 29 20
7 10 12 15 20    14 H 25 29 30
7 10 16 15 20 23 25 30 12.5 LR
8 12     10 H 17 20 16 25 30    16 H
8 12 10.5 LR 17 20 16.5 LR 25 30 16.5 LR
8 12     12 H 17 20 20 25 30 17
8 12 12.5 LR 17 20 20.5 LR 25 30    18 H
9 12 12 17 20 30.5 LR 25 30 20
9 12 16 17 21 16 25 30 20.5 LR
10 13 12.5 LR 17 21 20 25 30 26.5 LR
10 14    12 H 17 22 13 25 30 30
10 14 13 17 22     14 H 25 30 32
10 14    14 H 17 22 16 25 30 38.5 LR
10 14 16 17 22 23 25 32 22
10 14 20 17 24 20 28 32 17
12 15 12 20 24 16 28 32 20
12 15 12.5 LR 20 24 20 28 32 30
12 15 16 20 25 12.5 LR 29 32 13
12 15 16.5 LR 20 25     16 H
12 15 22.5 LR 20 25 16.5 LR
12 16   12 H 20 25 17
12 16 13 20 25     18 H
12 16     14 H 20 25 20
12 16 16 20 25 20.5 LR
12 16 20 20 25 26.5 LR
12 16 22 20 25 30
14 17 17 20 25 38.5 LR
20 28 20 H = WITH OIL HOLE


           Dimensions in mm           Dimensions in mm           Dimensions in mm
d F B d F B d F B
30 35 12.5 LR 50 55 20 120 130 30
30 35 13 50 55 25 120 135 45
30 35 16 50 55 35 130 145 35
30 35 16.5 LR 50 58 22 130 150 50
30 35 17 50 58    23 H 140 155 35
30 35     18 H 50 58 40 140 160 50
30 35 20 50 60    20 H 150 165 40
30 35 20.5 LR 50 60 25 160 175 40
30 35 26 50 60 28 170 185 45
30 35 30 55 60 25 180 195 45
30 37 18 55 60 35 190 210 50
30 37 22 55 63 25 200 220 50
30 38     20 H 55 63 45 220 240 50
32 37 20 55 65 28 240 265 60
32 37 30 60 68 25 260 285 60
32 40 20 60 68 35 280 305 69
32 40 36 60 68 45 300 330 80
33 37 13 60 70 25 320 350 80
35 40 12.5 LR 60 70 28 340 370 80
35 40 16.5 LR 65 72 25 360 390 80
35 40 17 65 72 45 380 415 100
35 40 20 65 73 25
35 40 20.5 LR 65 73 35
35 40 30 65 75 28
35 42     20 H 70 80 25
35 42 20.5 70 80 30
35 42      21 H 70 80 35
35 42      23 H 70 80 54
35 42 36 70 80 56
35 43 22 75 85 25
38 43 20 75 85 30
38 43 30 75 85 35
40 45 16.5 LR 75 85 54
40 45 17 80 90 25
40 45 20 80 90 30
40 45 20.5 LR 80 90 35
40 45 30 80 90 54
40 48 22 85 95 26
40 48    23 H 85 95 36
40 48 40 85 100 35
40 50    20 H 85 100 63
40 50 22 90 100 26
42 47 20 90 100 30
42 47 30 90 100 36
45 50 25 90 105 35
45 50 25.5 LR 90 105 63
45 50 35 95 105 26
45 52 22 95 105 36
45 52    23 H 95 110 35
45 52 40 95 110 63
45 55    20 H 100 110 30
45 55 22 100 110 40 H = WITH OIL HOLE
100 115 40
110 120 30
110 125 40
